Procool | SKU: AV-280T

AV-280T - Cabinet Fan System - 2 Variable Speed Fans

$49.99

Shipping calculated at checkout.

Fan Mount Options

No fan mounts Includes fan mounts

Grill Options

Black (Standard) Chrome Filter

Product variants

Delivery and Shipping

Stock items ship in one to two business days. Out of stock items typically ship within one week, or up to 8 weeks. Contact us for lead times.

Free UPS Ground shipping to the USA with purchase of a rack fan system!

Need help?

Need it fast? Need a large quantity?

Call or email us for a quote.

Airflow

28-64 CFM

Noise

9-17 dBA

Description

PROCOOL AV-280T is a temperature controlled, variable speed silent fan system.

Two 80mm Thermistor controlled fans speed up as heat increases and will slow down as heat decreases.

Quiet Operation

With a noise level of only 9-17 dBA at top speed, the AV-280T is the quietest 2 fan system available.
The low noise makes this system suitable for noise sensitive applications from home AV to professional studios.

Variable Speed Fans

1200-2400 RPM
The fan system includes temperature sensors for independent fan speed regulation. The sensors detect heat above 77°F and gradually increase the fan speed until it reaches maximum at 104°F. For optimal performance, it is recommended to place the sensor near the heat source.

Airflow

28-64 CFM combined
As temperature and speed increase the airflow increases to provide optimum cooling for most racks.

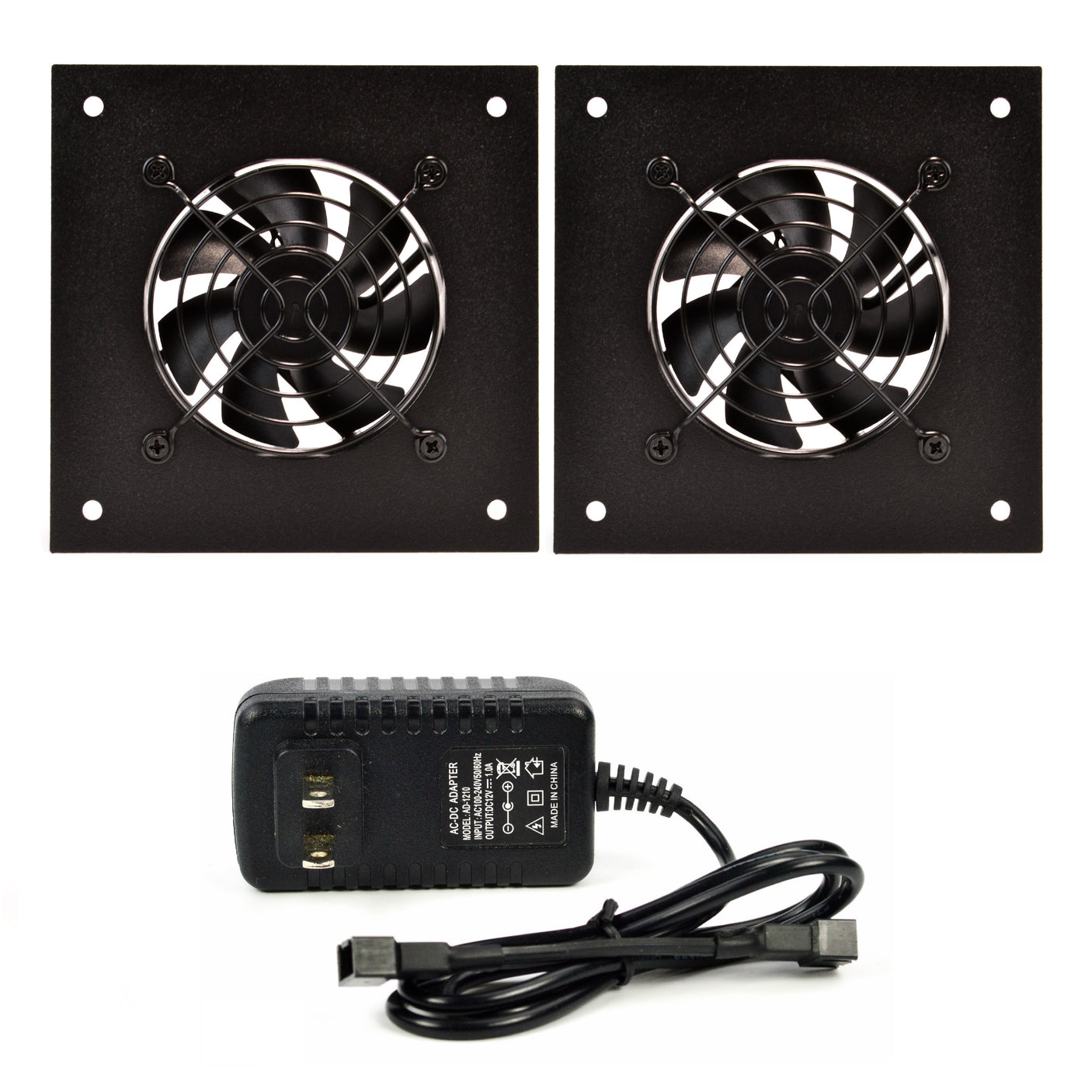

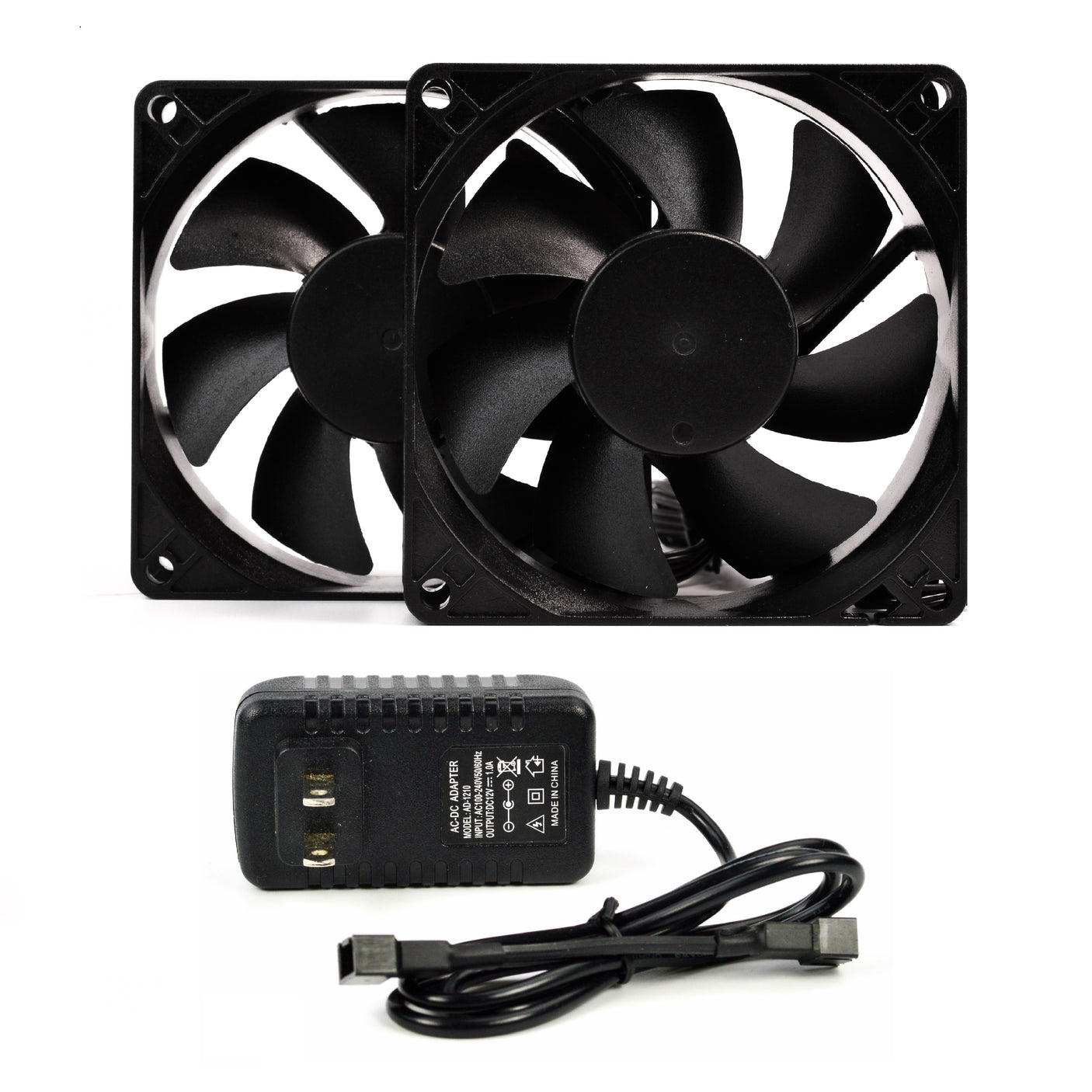

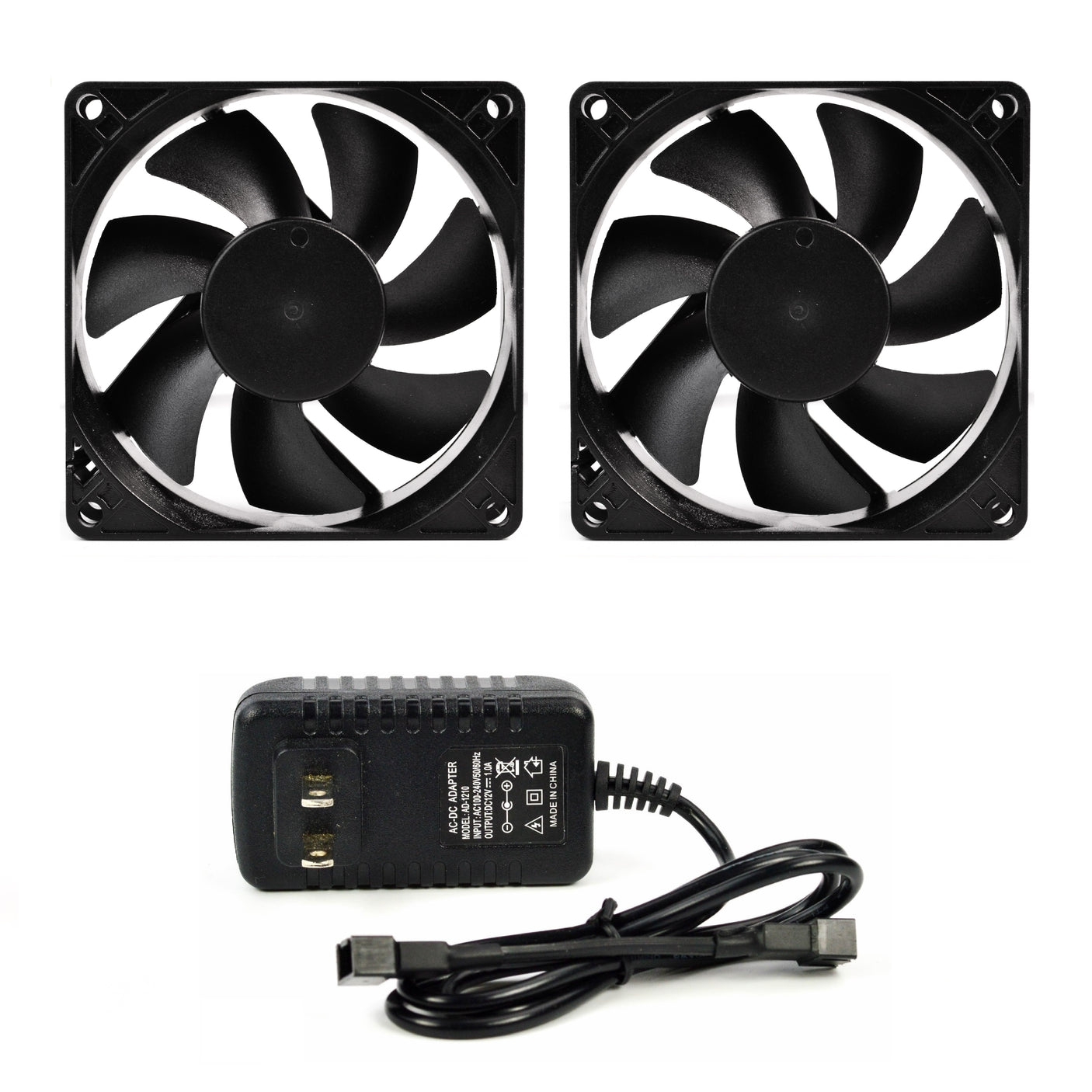

AV-280T Includes:

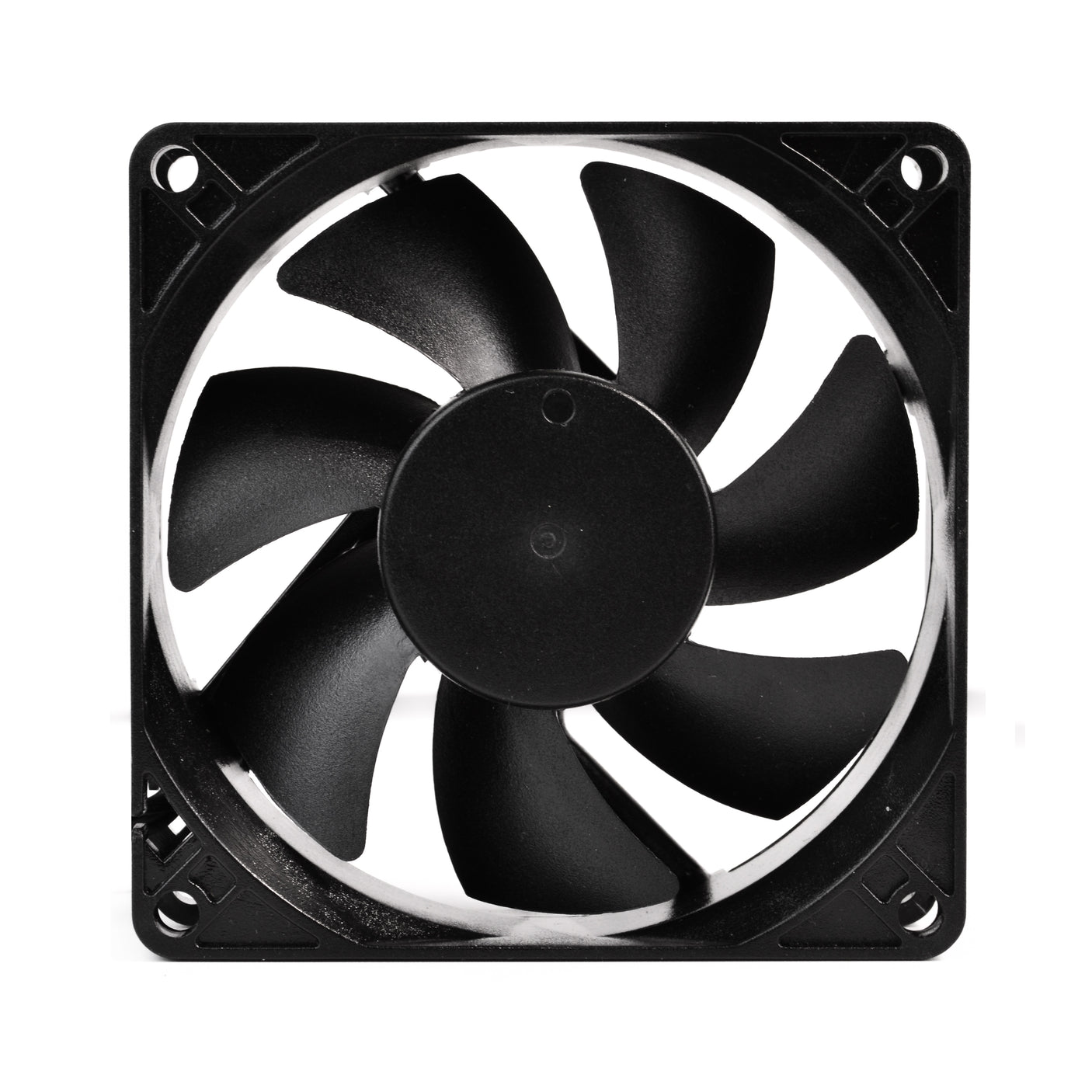

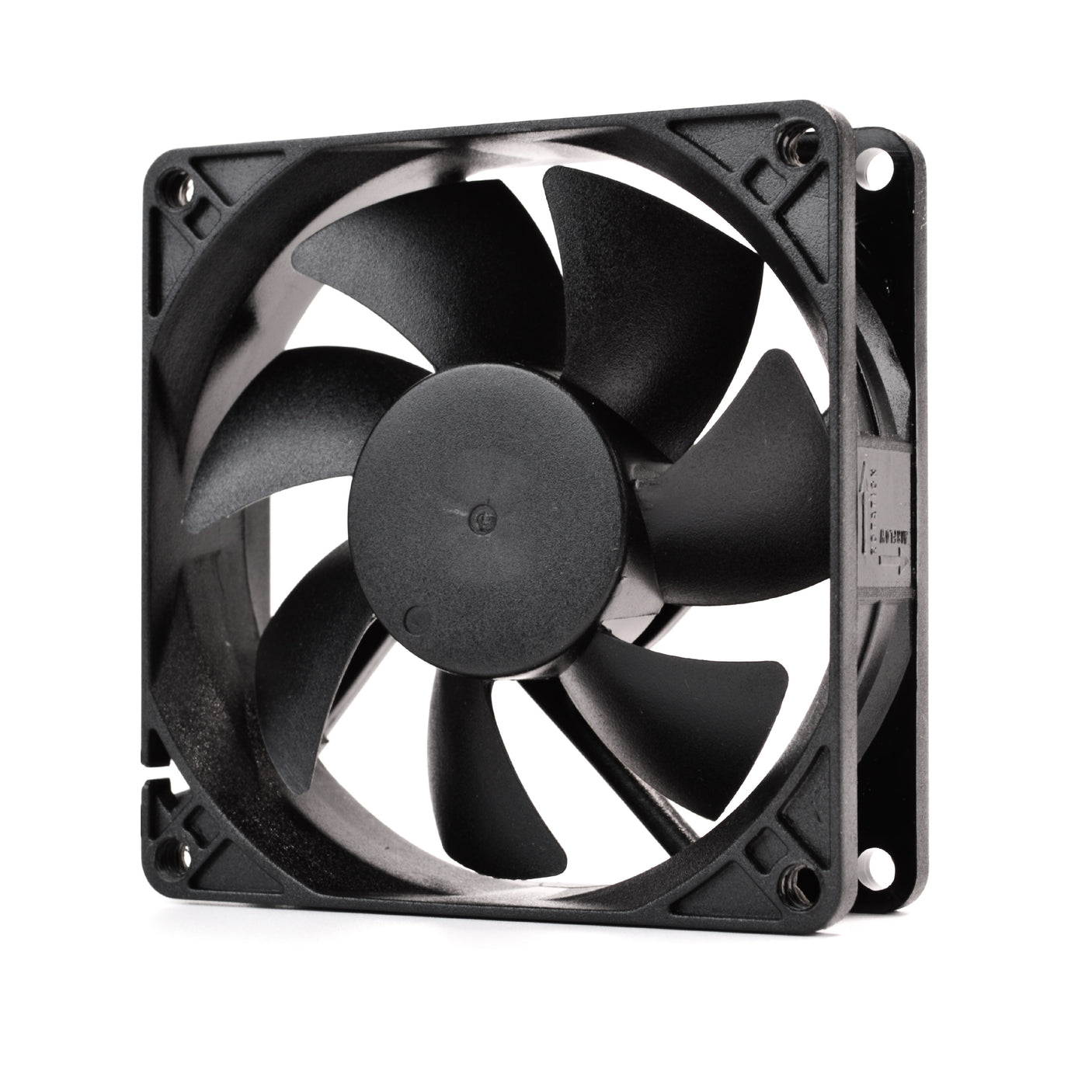

✓ 2 SXT80 Temp controlled fans.

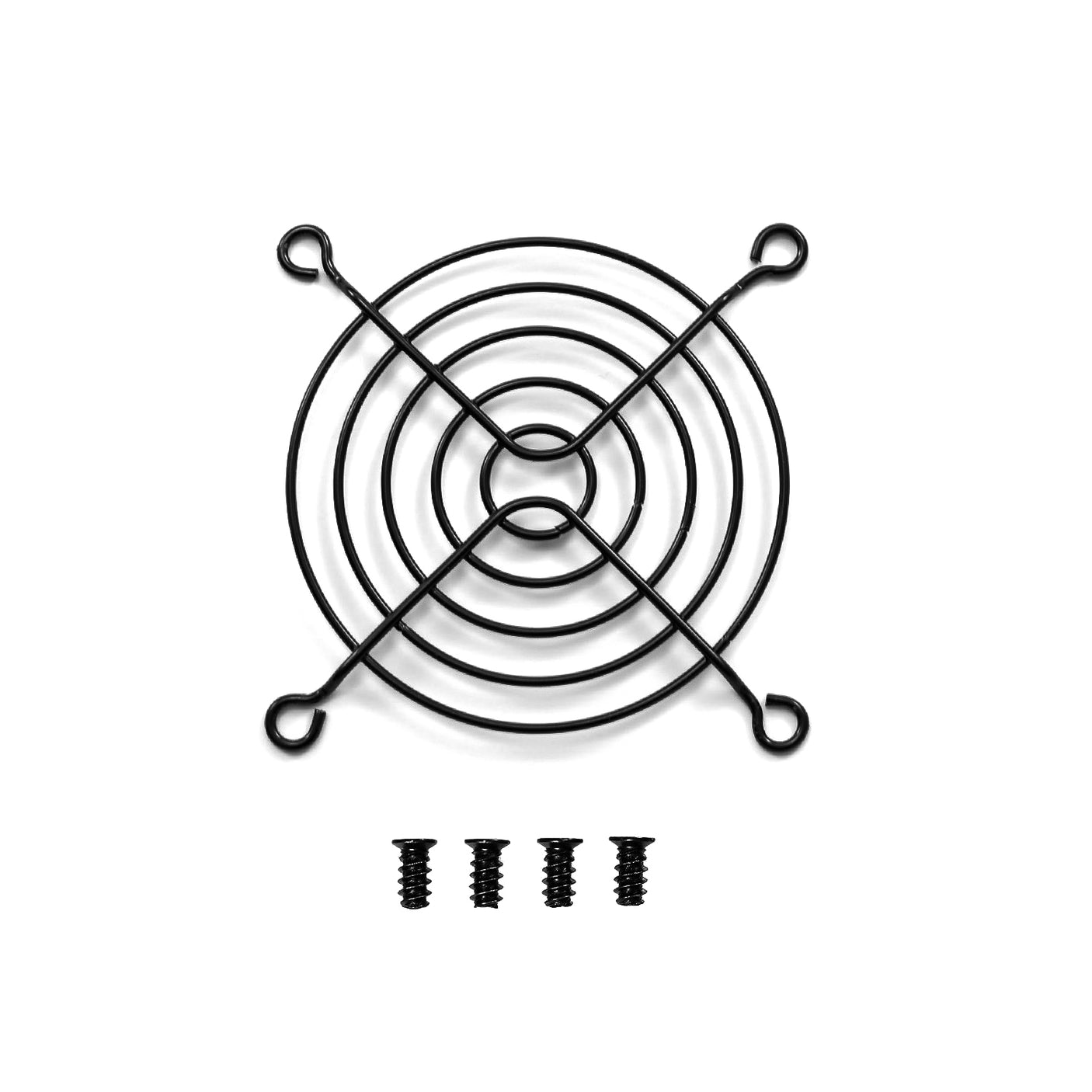

✓ 2 Fan Grills w/screws
✓ Power supply

Optional:

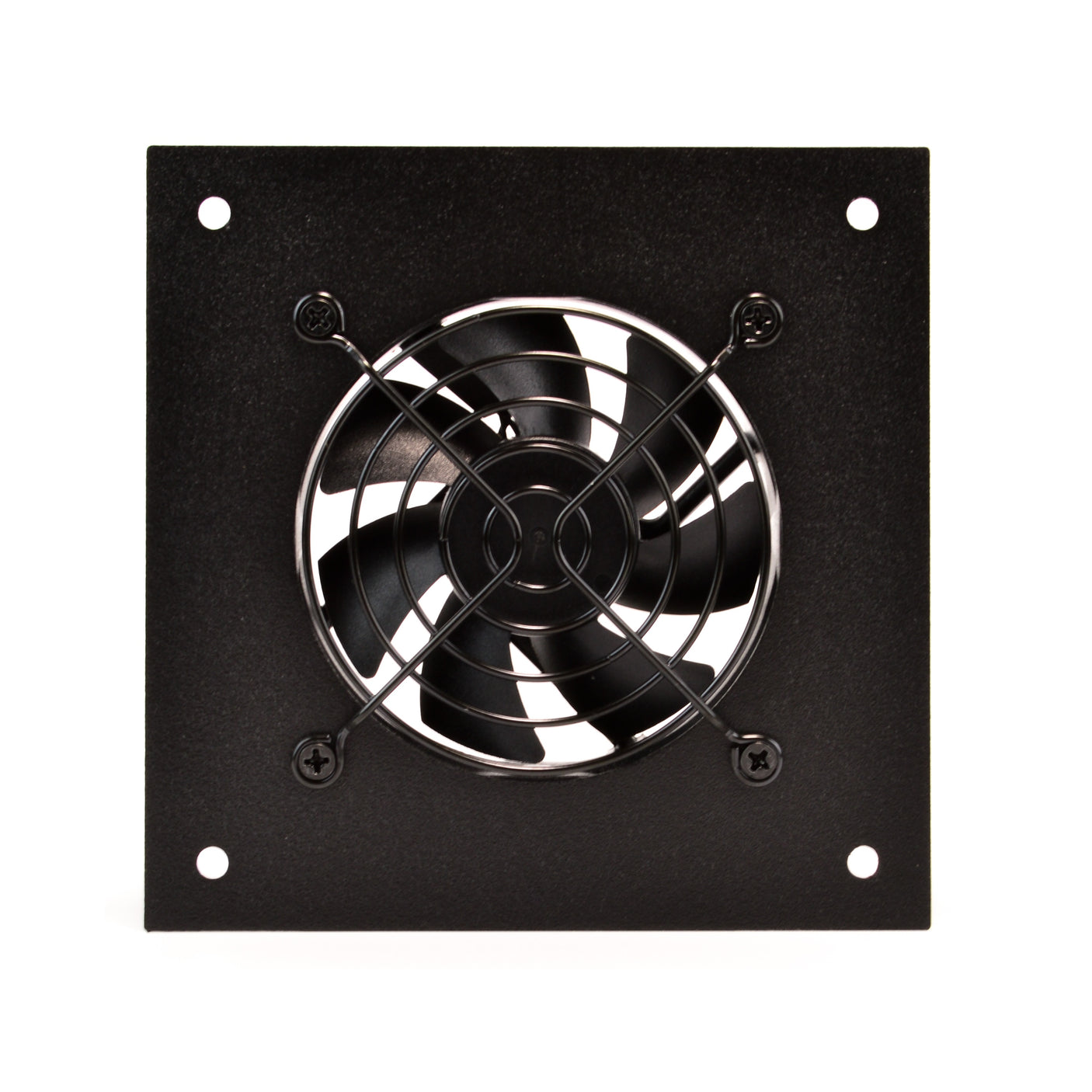

Fan mount

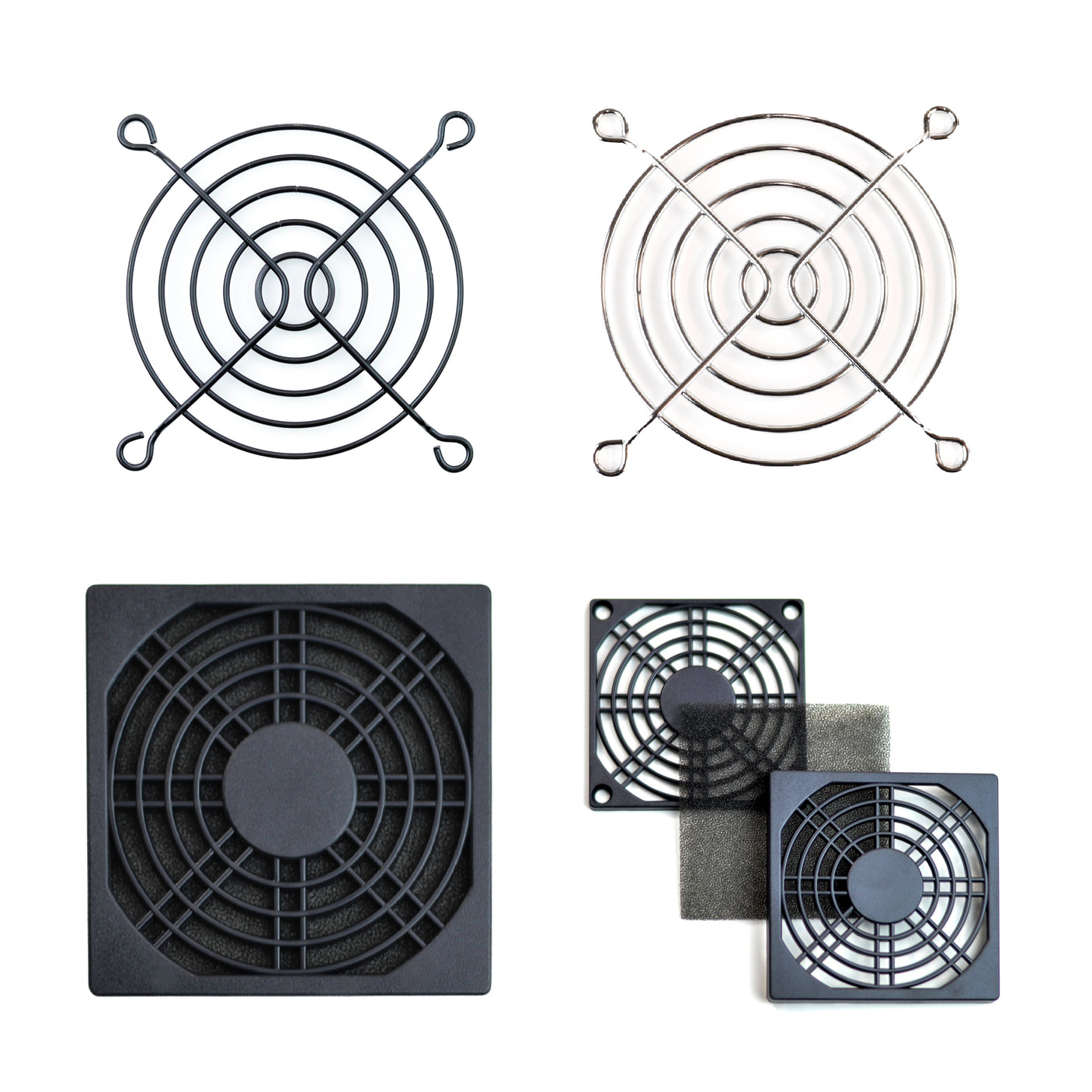

Chrome or filter grills

Specifications

Panel size

5" x 5"
Panel color

Black powder coat
Panel material

Metal
Number of fans

2
Fan dimensions

80mm x 80mm x 25mm
Fan size

80mm
Fan model

SXT80
Fan speed

14-32 CFM

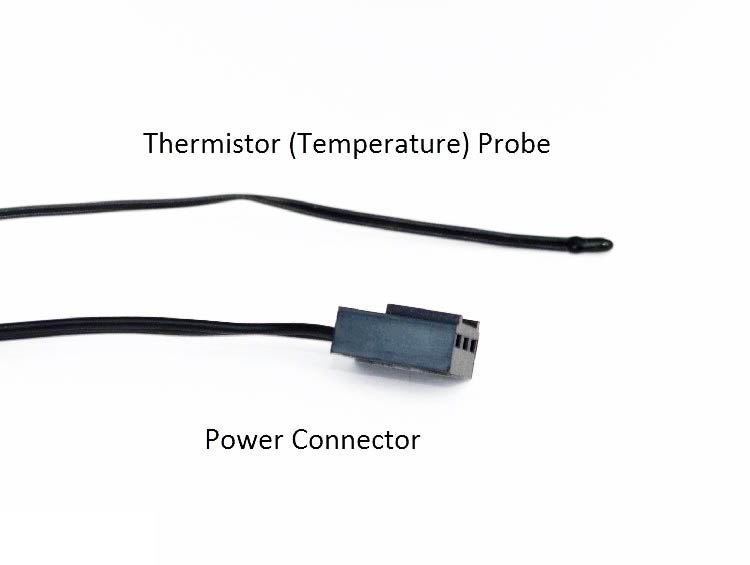

Fan Thermistor wire length

24"
Airflow

28-64 CFM
Noise

9-17 dBA
Bearings

Sleeve bearings
Static pressure

2.52mm H2O (per fan)
Power consumption

4.08w
Fan voltage

12 VDC
Current draw

0.34A
Grill type

80mm black wire

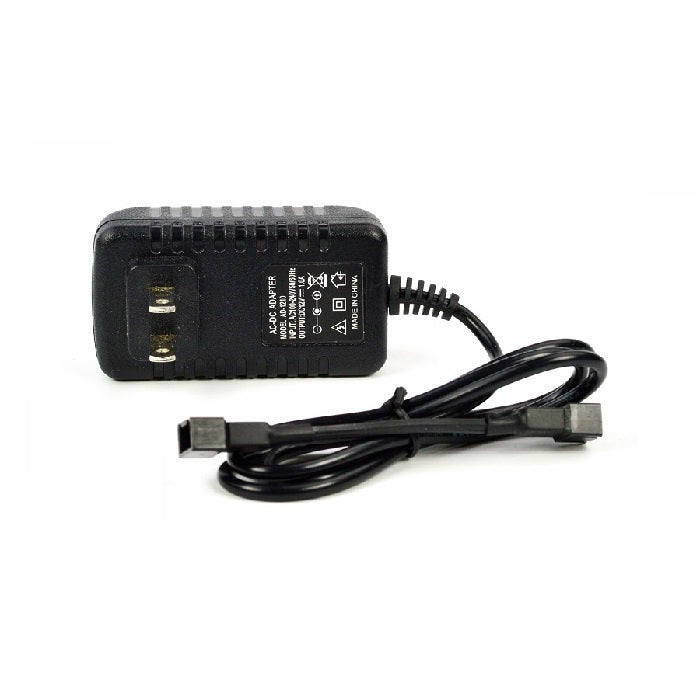

Power supply model

AV-PS2
Power supply voltage

12 VDC / 1 A
Power supply cable length

30"
Power supply AC plug type

NEMA 1-15P
Power supply DC plug type

3 pin fan plug

A table comparing the facets of 3 products
Facet	AV-280T - Cabinet Fan System - 2 Variable Speed Fans View details	AV-180T - Cabinet Fan System - 1 Variable Speed Fan View details	AV-480T - Cabinet Cooling System - 4 Variable Speed Fans View details
By
By	Procool	Procool	Procool
Price
Price	From $49.99	From $29.99	From $99.99
Rating
Rating	-	-	-
Product variants
Product variants	Fan Mount Options No fan mounts, Includes fan mounts Grill Options Black (Standard), Chrome, Filter	Fan Mount Options No fan mount, Includes fan mount Grill Option Black (Standard), Chrome, Filter	Fan Mount Options No fan mounts, Includes fan mounts Grill Options Black (Standard), Chrome, Filters
Number of fans
Number of fans	2	1	4
Airflow
Airflow	28-64 CFM	14-32 CFM	56-128 CFM
Static pressure
Static pressure	2.52mm H2O (per fan)	2.52mm H2O	2.52mm H2O (per fan)
Noise
Noise	9-17 dBA	6-14 dBA	12-20 dBA
Fan speed
Fan speed	14-32 CFM	1200-2400 RPM	1200-2400 RPM
Fan dimensions
Fan dimensions	80mm x 80mm x 25mm	80mm x 80mm x 25mm	80mm x 80mm x 25mm
Power supply model
Power supply model	AV-PS2	AV-PS1	AV-PS4
Weight
Weight	-	-	-
